Stages & Stage Accessories
CS-1
Contact stage upgrade for SS-3, wavelength range 190-1700nm.
SS-3
6″ x 6″ sample stage supplied standard with F20 systems. Adjustable lens height, 103mm throat. For all wavelength ranges.

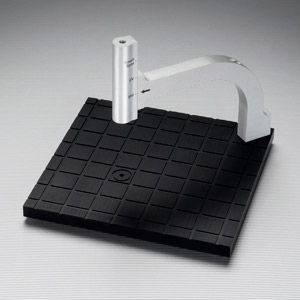

SS-3-8
8″ x 8″ sample stage. Adjustable lens height, 139mm throat. For all wavelength ranges.
SS-3-24
24″ x 24″ sample stage for F20. Adjustable lens height, 550mm throat. For all wavelength ranges.
SS-5
6″ x 6″ sample stage, with focusable reflective optics. Requires fiber with APC connector. For all wavelength ranges.
SampleHoldDown-SS-3-50
Sample holder for SS-3 stage, 50mm x 50mm.
SampleHoldDown-SS-3-110
Sample holder for SS-3 stage, 110mm x 110mm.
SampleHoldDown-F10-RT
Sample holder for F10-RT.
SampleCam
Video option for F20 systems. Includes hardware and camera. Live video shows the exact measurement location in real time. SS-3 stage not included.
SampleCam-sX
Video camera for the sX probe. Includes sX probe optics modifications. Stage not included.
StageBase-XY8-Manual-40mm
8″ x 8″ Stage with SS-3 lens and 40mm of precision X-Y-Focus travel. Can be upgraded to motorized mapping and autofocus.
StageBase-XY10-Auto-100mm
10″ x 10″ Stage with 100mm of precision X-Y-Focus travel, motorized mapping and autofocus.
SS-Microscope-UVX-1
Microscope (15x Reflective objective) with X-Y stage. UV light source & illumination fiber included.
SS-Microscope-EXR-1
Microscope with X-Y stage and illumination fiber. Requires objective lens. Light source is assumed to be F40.
SS-Trans-Curved
Transmittance stage for flat or curved surfaces. Includes fibers. Designed for use with the F10-AR. Wavelength range 250-2500nm.
T-1
Transmittance option for SS-3 stages. Includes fiber, stage adapter, and stage legs. For flat samples only.
